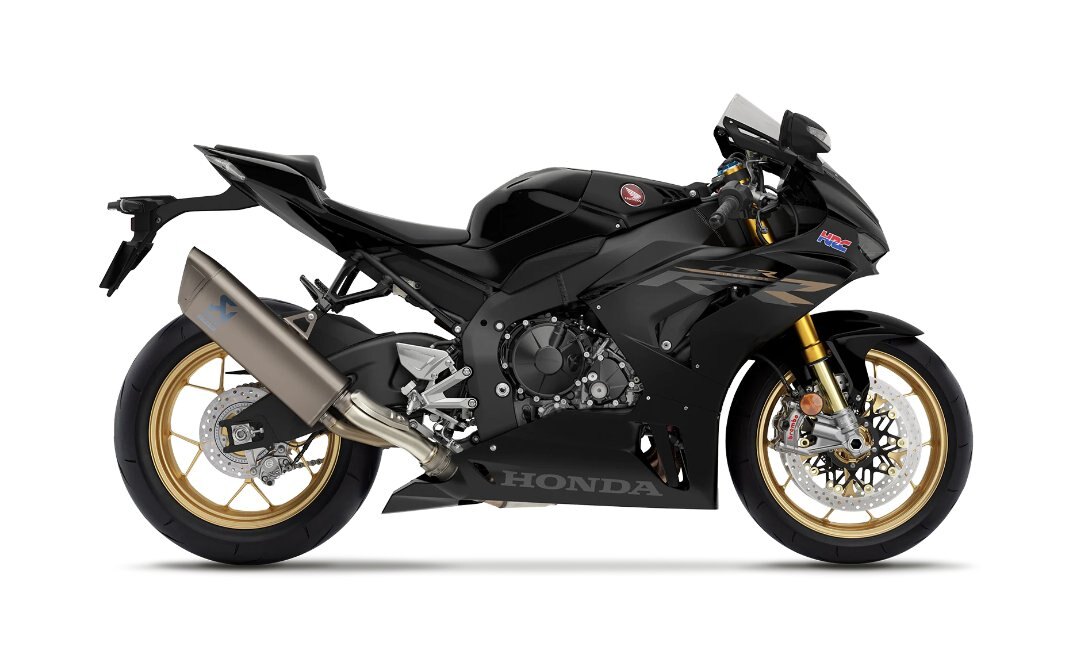

2023 Honda CBR1000RR-R FIREBLADE SP

  • 2023 Honda CBR1000RR R FIREBLADE SP
  • 2023 Honda CBR1000RR R FIREBLADE SP
  • 2023 Honda CBR1000RR R FIREBLADE SP
  • 2023 Honda CBR1000RR R FIREBLADE SP
  • 2023 Honda CBR1000RR R FIREBLADE SP
  • 2023 Honda CBR1000RR R FIREBLADE SP
  • 2023 Honda CBR1000RR R FIREBLADE SP
  • 2023 Honda CBR1000RR R FIREBLADE SP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

MotoGPTM DNA

The CBR1000RR-R Fireblade SP has been created from the ground up with heavy input from the HRC MotoGPTM development program. The engine and chassis technology lean heavily on that of the RC213V-S ‘Street legal MotoGPTM machine’, with aerodynamics drawn from the RC213V MotoGPTM bike. The Fireblade SP engine, handling and aerodynamics are built for outright track performance.

Specifications
Model
CBR1000RR-R Fireblade SP
Category Name
Motorcycles
Year
2023
Sale Type
New
Manufacturer
Honda
Engine Size
1,000 cc
Tires
Front: 120/70-ZR17 Rear: 200/55-ZR17
Brakes
Front: Dual 330 mm discs with 4-piston Brembo Stylema radial-mount calipers Rear: Single 220 mm disc with 2-piston Brembo caliper
Wheelbase
1,460 mm (57.5 in)
Curb Weight
201 kg (443 lb.)
Engine Type
Liquid-cooled in-line four cylinder
Final Drive
#520 O-ring sealed chain (16T/43T)
Seat Height
830 mm (32.7 in)
Valve Train
Chain-driven DOHC, four valves per cylinder
Transmission
6-speed (with Quickshifter)
Bore & Stroke
81 mm x 48.5 mm
Fuel Capacity
16.1 litres
Rear Suspension
Pro-Link® with gas-charged Öhlins TTX36 Smart-EC single shock featuring preload, compression and rebound adjustments; 143 mm (5.6 in) travel.
Front Suspension
43 mm telescopic inverted fork Öhlins NPX Smart Electronically Controlled suspension (Smart-EC) with preload, compression and rebound adjustments; 114 mm (4.5 in) travel.
Compression Ratio
13.4:1
features

MotoGPTM DNA

The CBR1000RR-R Fireblade SP has been created from the ground up with heavy input from the HRC MotoGPTM development program. The engine and chassis technology lean heavily on that of the RC213V-S ‘Street legal MotoGPTM machine’, with aerodynamics drawn from the RC213V MotoGPTM bike. The Fireblade SP engine, handling and aerodynamics are built for outright track performance.

Reduced friction

The engine’s durability has been improved by reducing internal friction, the cam lobes are now coated in Diamond Like Carbon (DLC) – similar to the RC213V-S. This is the first time this process has been used on a mass-production motorcycle. The cylinders also feature a built-in bottom bypass which circulates cool water from the radiator into the main water jacket, while the area below uses non-cooled water. The outcome is a lower, more even temperature at all points across the bores for less distortion and friction.

Semi-cam gear train

The valve train is driven by a semi-cam gear train system. To drive such high-RPM/high-cam lift performance the chain is driven from the timing gear located on the crank shaft via the cam idle gear – making it shorter in length and reducing weight.

Ram-air induction

A ram-air duct located in the front fairing tip feeds through the headstock, around the steering stem and into the airbox; this smooth path is made possible by the application of Honda’s Smart Key System. The area of the opening for this system is equivalent to that of the RC213V MotoGPTM machine and it’s design provides high ram pressure in a stable manner at a wide range of speeds. For 2023, intake ports, airbox, airbox funnels and exhaust mid section were revised to deliver extra mid-corner acceleration and drive.

Throttle By Wire

Throttle By Wire (TBW) has been enhanced for faster response through a range of part throttle applications - such as gradual opening as you exit a corner – minimizing any delay in torque delivery. It's derived from the RC213V-S to provide more linear delivery and puts precise throttle control - and a natural feel - in the rider's right hand.

Akrapovic exhaust

The 4-2-1 exhaust downpipes have optimized diameters and oval cross section to improve gas flow. The smaller, lightweight titanium exhaust muffler was developed in conjunction with Akrapovic, to help deliver both low-rpm torque and high-rpm power; a valve stopper helps stop exhaust-gas leak when closed while also reducing noise, allowing the mufflers total internal volume to be reduce by 38%.

Riding modes

Three default riding modes feature options to change the engines output and character. Power (P), Engine Brake (EB), Wheelie control (W) and Honda Selectable Torque Control (HSTC) can all be adjusted within the modes. The Fireblade SP is also equipped with Start Mode for race starts.

Wheelie Control

Wheelie control uses information gathered by the IMU on pitch angle, along with front and rear wheel speed sensors to maintain torque and manage any front wheel lift without sacrificing forward drive.

Honda Selectable Torque Control

Honda Selectable Torque Control (HSTC) adjusts through 9 levels plus off. HSTC has been updated for smoother, more intuitive grip management, helping to deliver maximum rider confidence.

Start Mode

The RR-R SP is also equipped with Start Mode for race starts. It limits the engine RPMs at 6,000, 7,000, 8,000 and 9,000 RPM set-points, even with a wide-open throttle, helping the rider focus on clutch release (and lights) alone. A quickshifter is also fitted as standard, with performance optimized for racing performance and reliability.

Aluminium diamond frame

The aluminium diamond-style frame uses the rear of the engine as the upper shock mount; the swingarm is longer and based on the RC213V-S design. The rigidity balance, weight distribution and steering geometry have been carefully adjusted to improve stability, handling and traction

Bosch six-axis IMU

A six-axis Inertial Measurement Unit (IMU) provides a 3D estimation of riding dynamics and provides input to manage all of the electronic systems. The (IMU) also controls the new Honda Electronic Steering Damper (HESD).

Honda Electronic Steering Damper

Equipped with Showa’s Honda Electronic Steering Damper (HESD). A lightweight through-rod design that mounts on the bottom of the steering stem and attaches to the bottom yoke, HESD is controlled by input from the wheel speed sensors and IMU; 3 levels of control are available.

Öhlins Smart Electronically Controlled (Smart-EC) suspension

The RR-R SP features semi-active Öhlins Electronically Controlled suspension (Smart-EC) with 43 mm Öhlins NPX forks and TTX36 shock. This suspension works in conjuction with the Öhlins Object Based Tuning interface (OBTi) to offer finer adjustment of settings.

Brembo brakes

Brembo Stylema four-piston radial mount brake calipers are operated by a Brembo master cylinder and brake lever. The 5 mm thick, 330 mm diameter discs helps to efficiently dissipates heat. The rear brake caliper is the same Brembo unit used by the RC213V-S.

Rear lift control

Rear lift control and ABS-managed brake force relative to lean angle boost confidence on turn-in. The system features two switchable modes; SPORT mode focuses on road-riding performance, with high brake force and less pitching, while TRACK mode offers performance in braking from much higher circuit speeds.

Improved aerodynamics

The RR-R SP's aggressive fairing design was no mere styling exercise; the goal in development was to create class-leading drag coefficient and restrict lift under acceleration while improving braking stability. This was achieved by adding an aerodynamic fairing, windscreen and mudguard and the fuel tank cover was lowered by 45 mm (compared to the previous design) to allow for a more compact riding position.

Increased downforce

To help generate downforce at track speeds – and maintain the smallest possible frontal area – the CBR1000RR-R Fireblade SP employs winglet structures that effectively generate the same downforce as the RC213V MotoGPTM machine. The results are a reduction in wheelies under acceleration and increased stability on braking and corner entry.

Customizable TFT display

Fully customizable, full colour 5-inch TFT display offers intuitive control, operated via a simplified four-way switch on the left handlebar.

Honda Smart Key System

With the addition of the Honda Smart Key System, the ignition now operates without having to insert a key, as does handlebar lock. Adding convenience in day-to-day use and has allowed for the use of a competition-style top yoke while freeing up space for the ram air system.

LED lighting

The RR-R SP is fitted with bright LED headlights and taillight.
