2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE

  • 2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

THE POWER OF THE WOW FACTOR.

A dinner over a pork chop and loaded baked potato won’t bring you the excitement you’re looking for with your significant other. Get guaranteed energy, fun and excitement by riding the new ARGO Xplorer XRT 1000 LE 2-up out in the wild. Fresh air in the lungs and the get-up-and-go performance of our 997cc liquid-cooled engine will bring out those ear-to-ear smiles. Plus, the XRT 1000 LE will impress anyone before you even hit the throttle with 26" Duro tires with aluminum wheels, handguards and premium painted plastic body panels.

If you can’t get enough riding on those sun-soaked trails by day, experience a beautiful evening under the stars. Our dual hi/low beam headlights and taillights will keep you safe no matter when you ride. Now strap your gear on heavy-duty front and rear racks and watch what the wow factor can do to any relationship.
Specifications
Model
Xplorer
Category Name
ATVs
Year
2024
Sale Type
New
Manufacturer
Argo
Color
PAINTED FLAME ORANGE
Engine Size
997CC
HITCH
STANDARD/2" RECEIVER
WIDTH
49.4 IN. (1,255 MM)
WINCH
3,000 LB WINCH
HEIGHT
49.8 IN. (1,265 MM)
LENGTH
92.1 IN. (2,340 MM)
BATTERY
12V 18AH AGM
IGNITION
ECU
LIGHTING
DUAL 60W LOW/HIGH BEAM LIGHTS, DUAL BRAKELIGHTS, TAILLIGHTS
STORAGE
FRONT FENDER X2
REAR RACK
165 LB (75 KG)
WHEEL RIM
ALUMINUM
WHEELBASE
57.5 IN (1,460 MM)
DRY WEIGHT
968 LB (440 KG)
FOOT BRAKE
2 WHEEL REAR BRAKE
FRONT RACK
99 LB (45 KG)
SKID PLATE
PLASTIC
WET WEIGHT
1,007.6 LBS (458 KG)
12V CHARGER
DC 12V 10A 120W X2
FINAL DRIVE
SHAFT DRIVE
FUEL SYSTEM
EFI
SEAT HEIGHT
37.4 IN (950 MM)
BRAKE - REAR
HYDRAULIC ​​DISC
DISPLACEMENT
997CC
START METHOD
ELECTRIC START
TORAGE FRONT
FENDER X2
BORE X STROKE
92 X 75.0 MM
BRAKE - FRONT
HYDRAULIC ​​DISC
ENGINE STROKE
4-STROKE
COOLING SYSTEM
LIQUID
DAYLIGHT STRIP
STANDARD
GEAR SELECTION
L/H/N/R/P
RIDER CAPACITY
2
INSTRUMENTATION
DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, FUEL GAUGE, HI-TEMP/LOW-BATT LIGHTS, HIGH BEAM LIGHT, EFI CHECKING, DIFFERENTIAL INDICATOR, 2WD/4WD INDICATOR, EPS INDICATOR
TOWING CAPACITY
1,225 LB (557 KG)
GROUND CLEARANCE
9.8 IN (250 MM)
TIRE SIZE (REAR)
AT26X10-14 (DURO)
COMPRESSION RATIO
10.2 : 1
DRIVE SYSTEM TYPE
2WD/4WD/LOCK
FRONT BRUSH GUARD
ACCESSORY
SUSPENSION - REAR
INDEPENDENT DOUBLE A-ARM
TIRE SIZE (FRONT)
AT26X8-14 (DURO)
TRANSMISSION TYPE
CVT AUTOMATIC
FUEL TANK CAPACITY
6.1 GAL (23 L)
SUSPENSION - FRONT
INDEPENDENT DOUBLE A-ARM
VALVE CONFIGURATION
4 VALVE
CYLINDER ARRANGEMENT
SOHC TWIN CYLINDER
DIFFERENTIAL FUNCTION
FRONT & REAR DIFFERENTIAL
SUSPENSION TRAVEL - REAR
10.4 IN (265 MM)
SUSPENSION TRAVEL - FRONT
8.7 IN (220 MM)
ENGINE BRAKING SYSTEM (EBS)
STANDARD
features

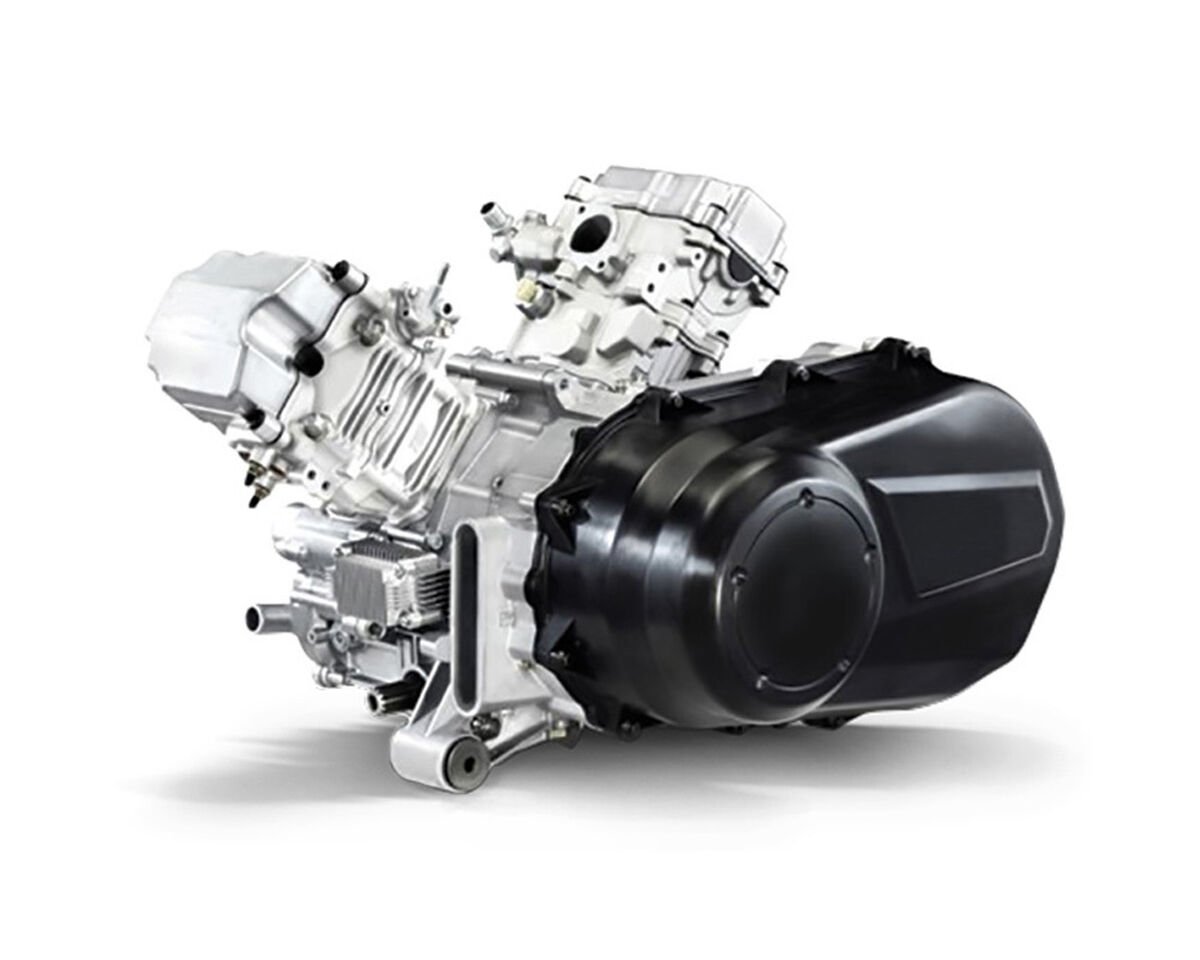

XRT 1000 LE ENGINE2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE

Pure power that excites. The dynamic 997cc V-Twin single overhead camshaft (SOHC) 4-stroke engine comes with EFI and liquid cooling for optimal performance in all conditions. With a subtle roar, it’s designed and tuned to deliver superlative fuel economy and progressive torque over its broad powerband, with an auxiliary fan for consistent performance in the most demanding conditions.

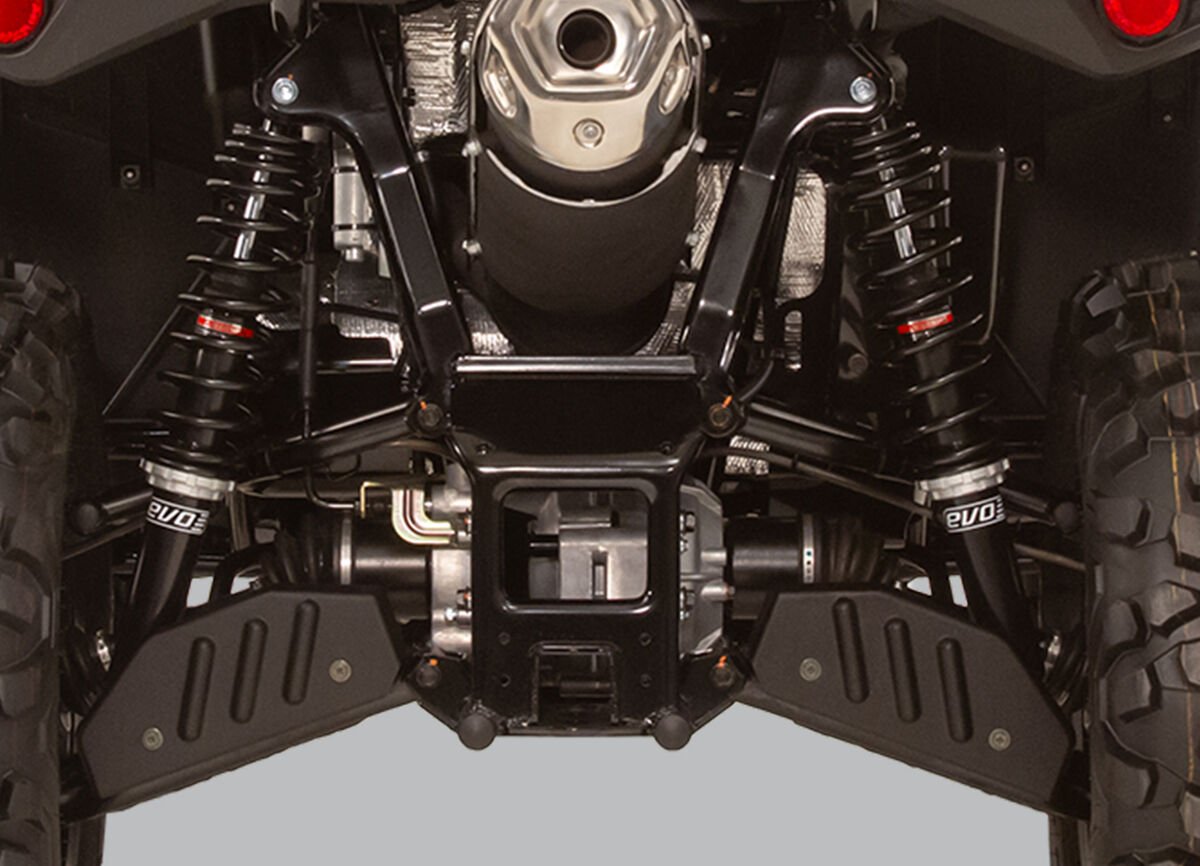

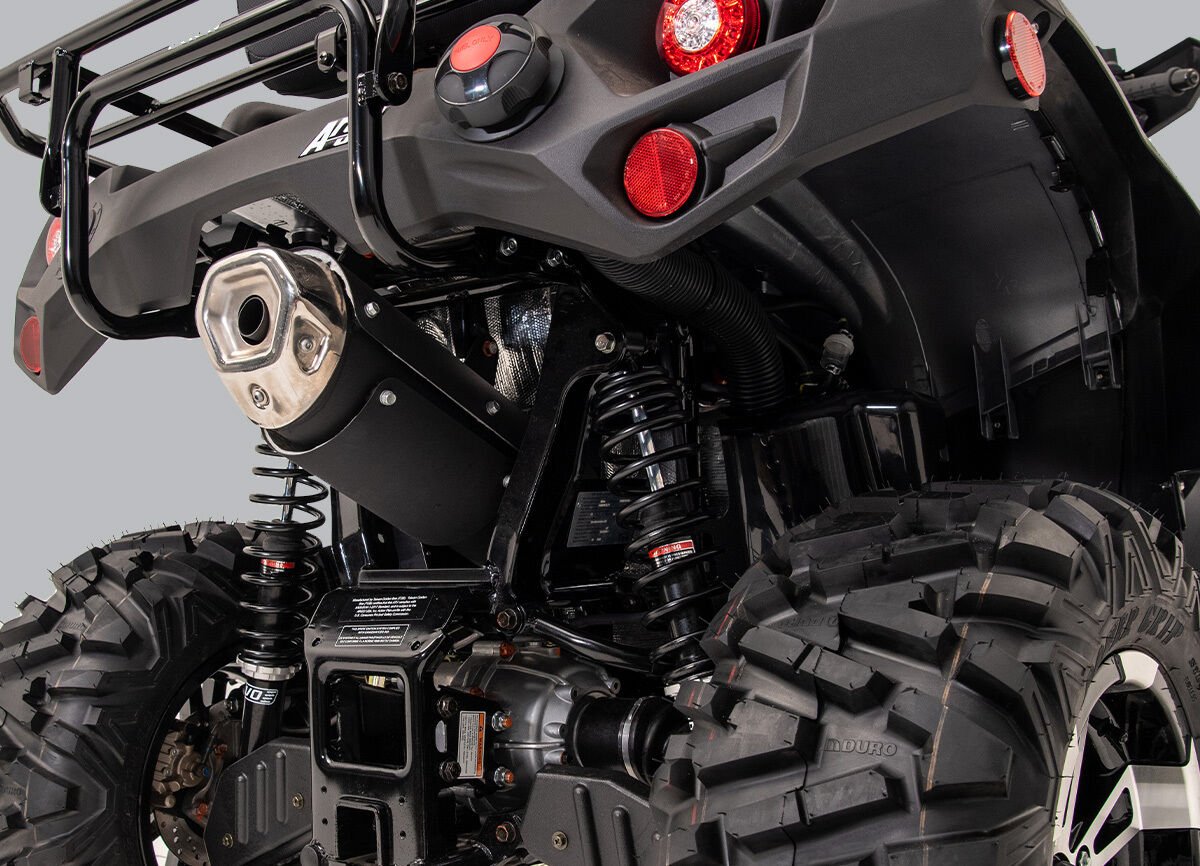

Improved Suspension2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE

Double A-arm front and rear suspension delivers premium comfort and control in all conditions. On all XRT models we mount the shocks to the lower A-arm for maximum shock performance and a wider range of rider comfort. Fine-tune the suspension for individual riding styles and load carrying with adjustable coil-over-spring settings.

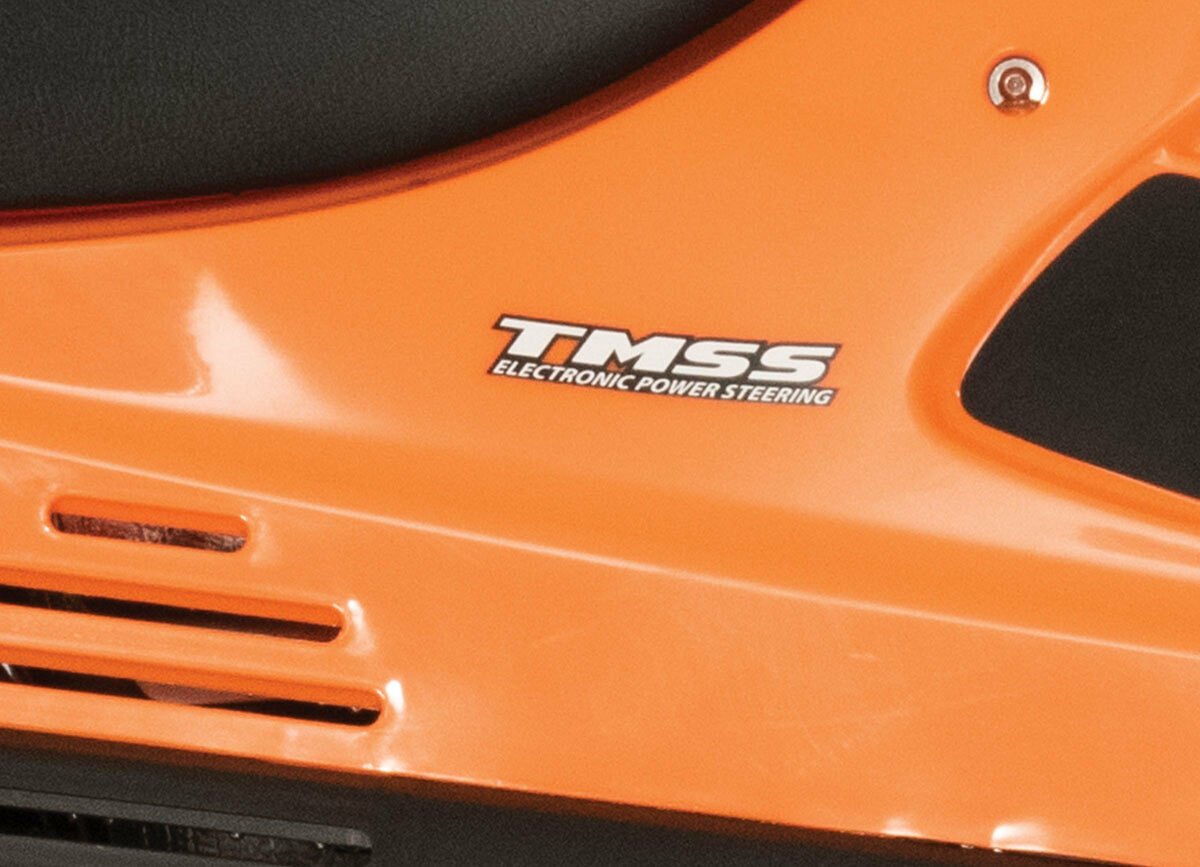

Electronic Power Steering2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE

All conveniently set from the digital display, the Tri-Mode Speed Sensing Electronic Power Steering (TMSS EPS) not only senses the ATV speed for varying levels of assist, the rider can select no assist, minimum assist and maximum assist steering.

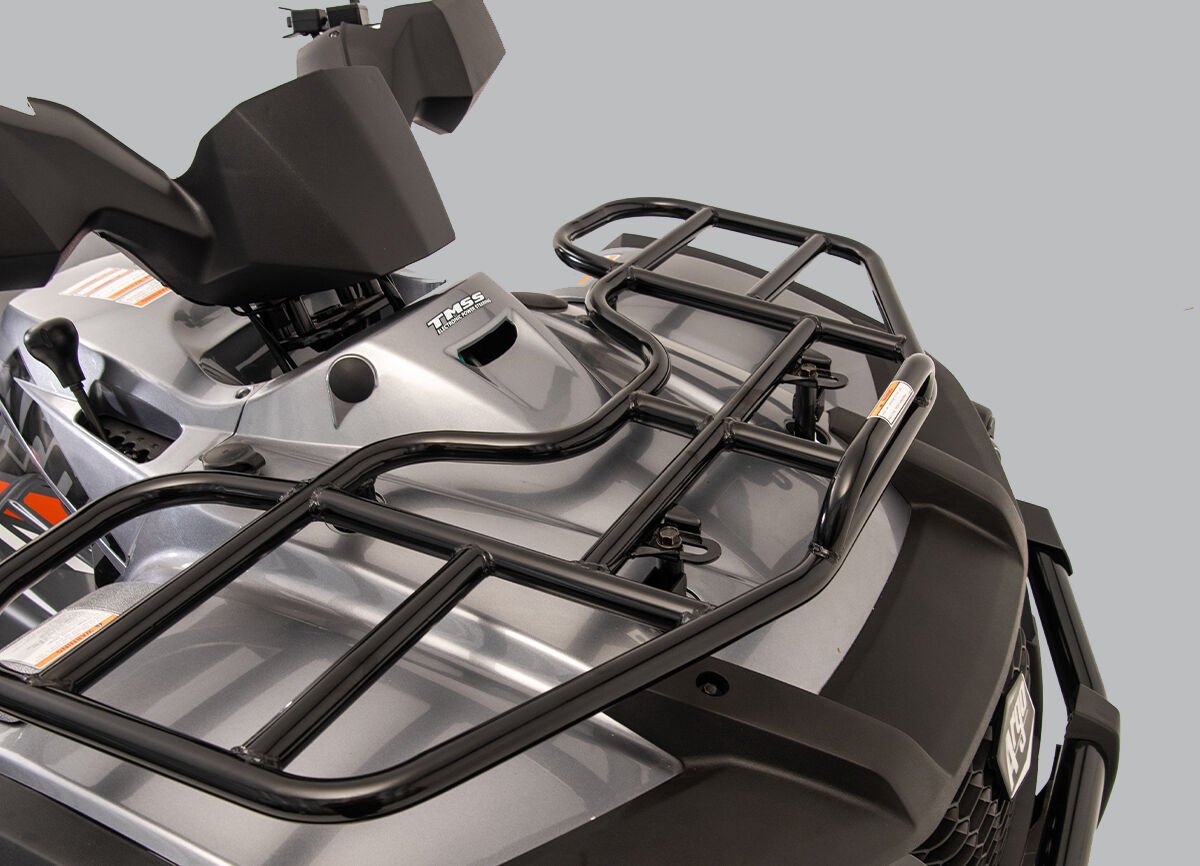

STEEL FRONT & REAR RACKS2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE

Gear up and get down that trail. The steel front and rear racks deliver 99 lbs. (45 kg) on the front and 165 lbs. (75 kg) carrying capacity on the rear, with multiple tie-down locations for maximum versatility. Load up your favorite gear and go!

MULTIFUNCTIONAL DIGITAL GAUGE2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE



Digital display features odometer, speedometer, trip odometer, RPM & fuel level. Surrounding the display are indicators for transmission position, fuel guage, hi-temp/low-batt lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator, EPS indicator.





PUSH-BUTTON 2WD/4WD WITH FRONT AND REAR DIFFERENTIAL LOCK2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE



Making your experience better. With just a push of a button, selecting between 2WD/4WD gives you on demand capabilities with the addition of a locking front and rear differential for added grab and traction in unruly terrain.

Heavy-Duty 3,000 LB Winch2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE

Be ready for everything and anything. When you need extra muscle, this heavy-duty 3,000 lb winch has been engineered for durability, which maximizes strength and longevity.

Hitch2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE

The rugged 2-inch receiver features automotive styling and a maximum towing capacity up to 1,225 LBS. (557 KG).

26" DURO TIRES WITH ALUMINUM WHEELS2024 Argo Xplorer XRT 1000 LE PAINTED FLAME ORANGE

Coming standard with 26” Duro tires seated on aluminum wheels, these aggressive off-road tires provide superior traction when venturing off road.
