Overview

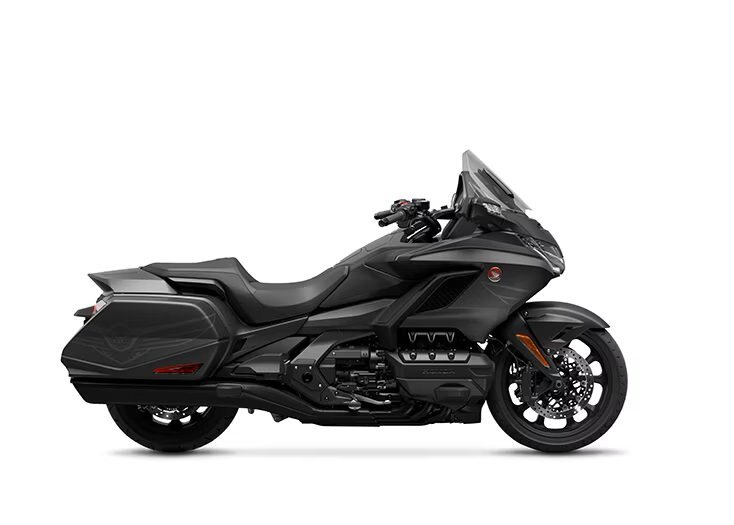

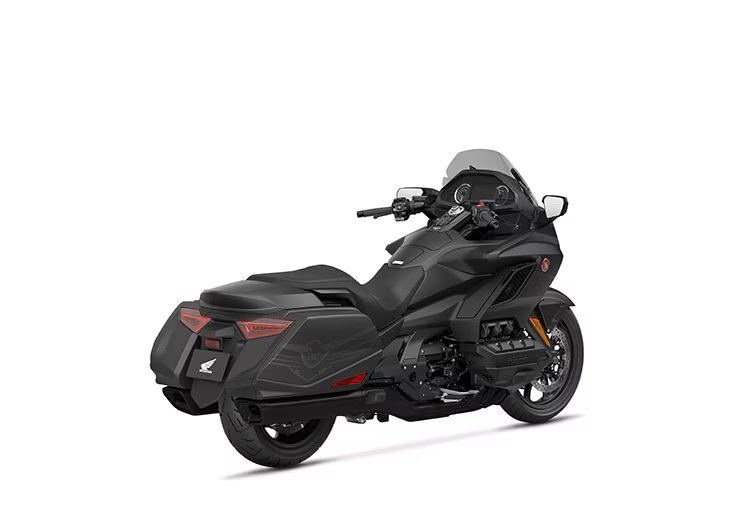

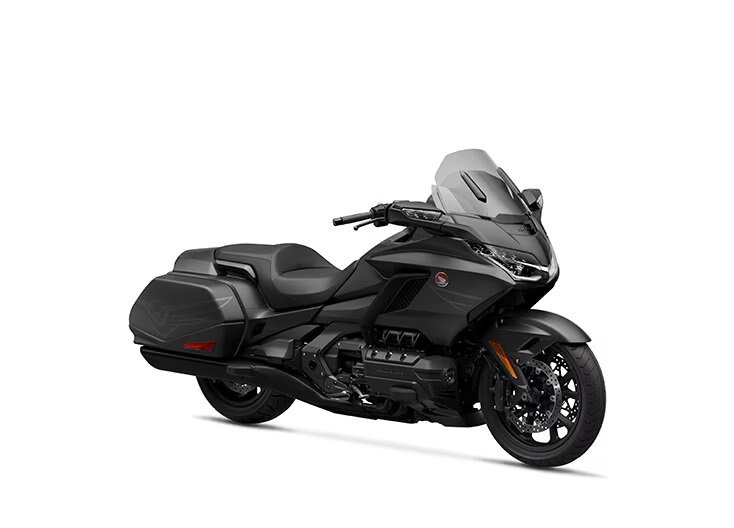

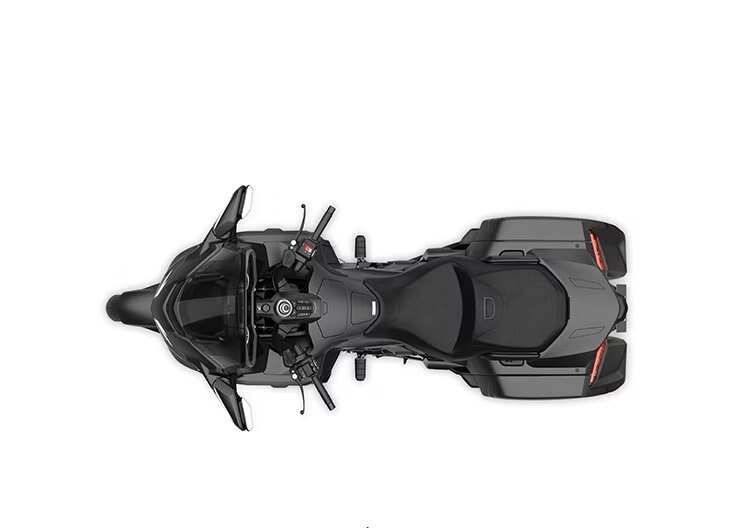

Honda Gold Wing Standard Motorcycle

Wherever you’re drawn to, the Honda Gold Wing is the motorcycle for the ride. It’s beautifully finished and designed to make touring more enjoyable. Powered by a magnificent 1,833 cc, six-cylinder engine, all housed in a sophisticated, nimble-handling chassis. The Gold Wing is built for a pure riding experience.

Specifications

Model

GOLD WING

Category Name

Motorcycles

Year

2025

Sale Type

New

Manufacturer

Honda

Color

Mat Ballistic Black Metallic

ABS

Electronically controlled Dual Combined Brake System (CBS) with ABS

Tires

Front: 130/70R - 18 Rear: 200/55R - 16

Brakes

Front: dual 320 mm discs with radially mounted six-piston Nissin calipers Rear: single 316 mm disc with three-piston Nissin caliper

Colour

Mat Ballistic Black Metallic

Warranty

3 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus

Wheelbase

1,695 mm (66.7 in)

Curb Weight

Manual: 366 kg (807 lb) including required fluids and full tank of gas - ready to ride. DCT: 367 kg (809 lb) including required fluids and full tank of gas - ready to ride.

Engine Type

Liquid-cooled horizontally opposed six-cylinder

Final Drive

Shaft

Seat Height

745 mm (29.3 in)

Valve Train

SOHC, 4 valves per cylinder

Displacement

1,833 cc

Transmission

Manual: Six-speed manual with overdrive and electric low speed reverse function DCT: Seven-speed Dual Clutch Transmission with forward and reverse walking speed mode

Bore & Stroke

73 mm x 73 mm

Fuel Delivery

PGM-FI electronic fuel injection

Fuel Capacity

21 litres

Rear Suspension

Pro Arm® Single-sided swingarm and Pro-Link® single shock; 105 mm (4.1 in) travel

Front Suspension

Double Wishbone; 110 mm (4.3 in) travel

Ground Clearance

Compression Ratio

10.5:1

engine & drivetrain

Hill Start Assist

Getting going when you’re stopped on an hill can be challenging, but not with the Gold Wing’s standard Hill Start Assist (HSA). This feature momentarily holds (3 seconds) your motorcycle’s position on inclines when the brakes are released and before you apply the throttle, eliminating any roll-back drama. It’s a great convenience, allowing smoother uphill launches and more rider confidence.

Six-Speed Manual Transmission

The Gold Wing is equipped with an advanced six-speed manual transmission with overdrive and electric low-speed reverse function. You get silky smooth and crisp shifting and effortless highway cruising – just what you’d expect from a motorcycle this sophisticated.

Advanced Ride Technology

Throttle-by-wire contributes to the Gold Wing’s stellar throttle response and smooth power delivery. Open road ahead? Standard electronic cruise control helps to make the ride even more relaxing.

Selectable Riding Modes

Switch between four Selectable Riding Modes to easily find the power and performance to match your preferred riding style or the road conditions. Choose between Sport, Tour, Econ or Rain modes to automatically adjust throttle response, and braking characteristics.

Handy Reverse

The Gold Wing with manual transmission offers a unique electric low-speed reverse function. This system makes it easy to manoeuvre your motorcycle out of a parking space, especially if you need to roll it uphill.

Assist Slipper Clutch

We’ve given our manual-transmission Gold Wings an assist slipper clutch, just like our premium sportbikes. It only makes sense – the 1,833 cc engine delivers tons of power, and the chassis lets you ride this Gold Wing like a sportbike. Twisty roads? Bring ’em on!

Smooth, Responsive Power

The Honda Gold Wing Tour gets its impressive power from an 1,833 cc horizontally opposed six-cylinder engine with four-valve Unicam ® cylinder head design. Not only does this advanced engine produce loads of power from way down low in the rev range, it delivers that power in an incredibly smooth and responsive manner.

Honda Selectable Torque Control (HSTC)

Honda Selectable Torque Control (HSTC) constantly monitors your bike’s rear-wheel speed, and adjusts torque instantly. It’s a great feature when riding in the rain, on sandy, gritty roads, over wet leaves, or anywhere else where surface conditions can compromise traction.

Walking Speed Modes

All Gold Wings with DCT transmissions feature forward/reverse Walking Speed modes that allow you to creep forward or reverse under power using the DCT system combined with the Shift Down and Shift Up levers. Walking Speed modes move the motorcycle at approximately 1.8 km/h forward and 1.2 km/h backward. Think how easy it will be to get in and out of tight parking spots with a fully loaded bike, especially if you need to roll back uphill.

Idle Stop System

The industry’s first and exclusive Idle Stop System automatically stops/starts the engine when the motorcycle is stationary. The key goals when developing this system were to make starts very quiet and smooth in addition to reducing fuel consumption and lowering noise for the riders at traffic lights. The engine stops after about 3 seconds. To restart the bike, the rider simply twists the throttle and the engine immediately starts. This feature can be manually shut off through the Vehicle Setting Menu in the infotainment system or on the right toggle Start switch.

7-Speed Dual-Clutch Transmission (DCT)

The Gold Wing Tour DCT incorporates Honda’s revolutionary 7-Speed Automatic Dual-Clutch Transmission, which takes the joy of riding to the next level by automating clutch and shift operation while retaining the direct feel of a manual transmission. DCT lets you take in the scenery and focus on your ride rather than which gear you should be in.

chassis & suspension

Innovative Front Suspension

The Gold Wing’s innovative double-wishbone front suspension is not only revolutionary, it also improves handling and rider ergonomics. The design changes the path the wheel travels through the suspension stroke, and that allowed Honda engineers move both the engine and the rider/passenger closer to the front wheel. This results in more space and outstanding road performance.

Athletic Styling

The eye-catching bodywork offers excellent aerodynamics while maintaining strong wind and weather protection.

additional features

Bluetooth ® Connectivity

Seamlessly connect compatible electronic devices via Bluetooth® connectivity, available on all Gold Wing and Gold Wing Tour models to conveniently enjoy MP3, iPod® and USB integration onboard and on 2025 models a second USB connector in the left saddlebag.

Brilliant LED Lighting

Day or night, you’ll love the Gold Wing’s Brilliant LED lighting. The LED headlight design helps to light the way brilliantly when it’s dark, while the headlight and LED tail light contribute to the bike’s sleek styling. Plus, angular mirrors feature integrated self-cancelling LED turn signals.

Android Auto + Apple CarPlay® With Siri

Get directions, make a call, receive messages, or even listen to your favourite cruising playlist through onboard controls or voice recognition – it’s easy to do all this and more by incorporating your iPhone or Android into the Gold Wing’s built-in display.

*For using Apple CarPlay and Android Auto, connection to a commercially available Bluetooth headset is necessary. Please refer to your Bluetooth headset manufacturer for optimal audio settings for use with Android Auto.

Smart Key Fob

For those who appreciate the ultimate in convenience and security, the Gold Wing’s smart key fob never has to leave your pocket. The proximity-key system starts the bike at the touch of a button and also conveniently opens storage compartments.

Distinctive Wheels & TPMS

Form meets function in the Gold Wing's distinctive wheels, which look sharp while adding to the bike’s composed handling. A wide 200 width rear tire grips the road firmly, while the standard Tire Pressure Monitoring System (TPMS) automatically warns you of low tire pressure on all Gold Wing models and includes a dashboard readout of the actual front and rear pressure in PSI.

Heated Grips

Part of riding a bike is enjoying the elements. But nobody likes being cold. That’s why every Honda Gold Wing DCT comes equipped with heated grips as standard equipment.

Adjustable Electric Windscreen

Every touring rider can appreciate the extra wind and weather protection from the Gold Wing’s fully adjustable electric-powered windscreen. For better usability, the windscreen moves both up and down over a 4.1 inch range, changing it's angle as it raises and lowers, and will move to the lowest position when the ignition is turned off. When you start to ride again (5 km/h or more), the windscreen returns to the last position you set it.
